Altis Powersports

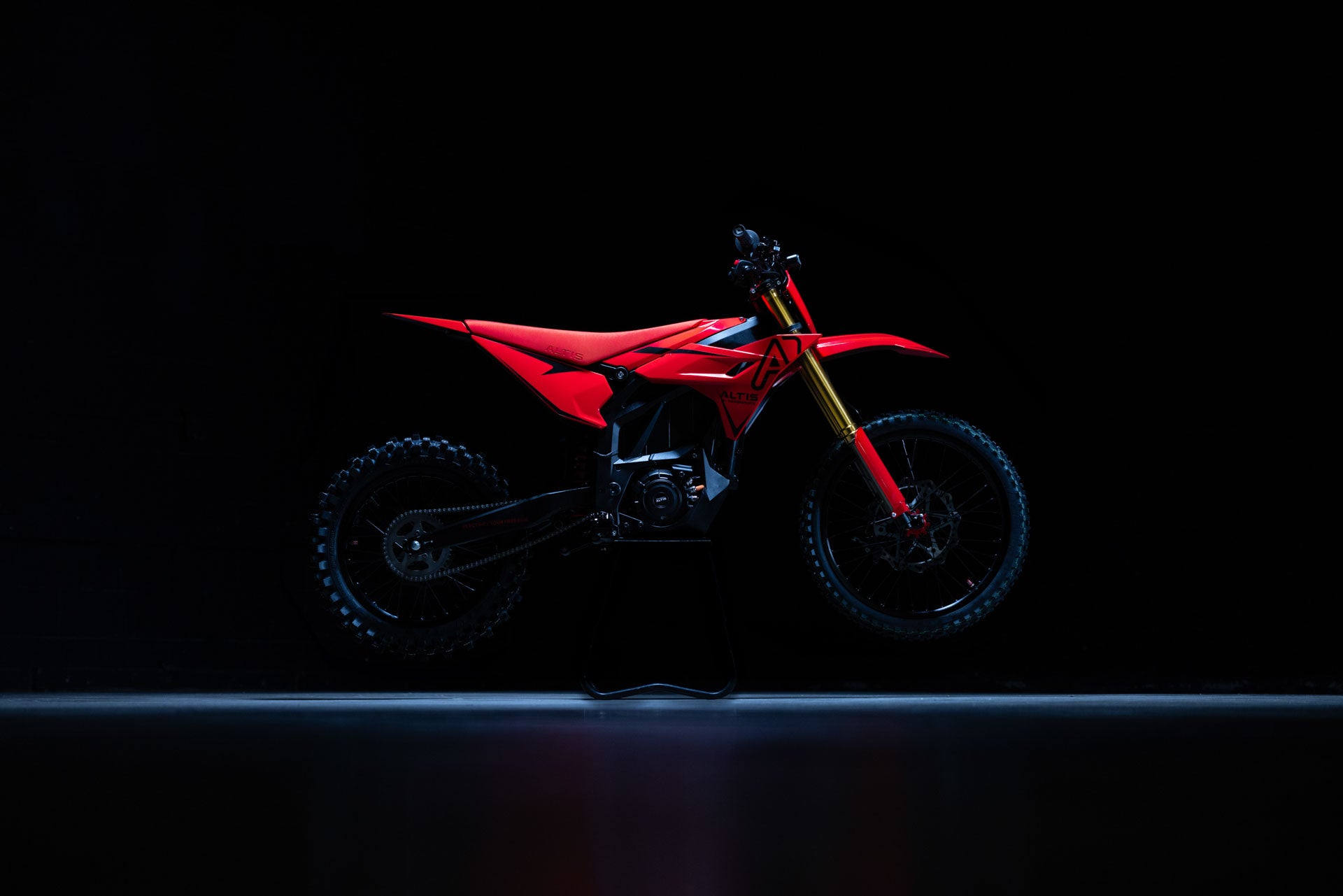

Sigma

Sigma

$5,499.00 USD
$5,499.00 USD
Sale Sold out

MODEL HIGHLIGHTS

  • 97.2V35Ah (3402Wh) Samsung 50S battery Cells (Greenway Battery Pack)
  • Charging time (20% - 80%): 2 Hours
  • 22kw peak Hairpin Motor (Automotive standard)
  • Adjustable off-road air-spring suspension
  • 3.5" TFT display with NFC feature
  • 5 levels of regenerative braking
  • Headlight & Taillight (w/brake light) switch
  • Heavy duty disc brake
  • CST off-road tires

Standard: 533n.m torque (39T Sprocket)

MX: 601n.m torque (44T Sprocket)

** Delivery dates range between early December and early January.

View full details

CHASSIS

  • Weight (with battery): 88 kg
  • Wheelbase: 1285 mm
  • Front brake disc diameter: 260 mm
  • Rear brake disc diameter: 220 mm
  • Chain: 428H
  • Frame design: Aluminium alloy forging
  • Ground clearance: 300m
  • Seat height: 840 mm
  • Steering head angle: 26 °
  • Suspension travel (front): 200 mm
  • Suspension travel (rear): 85 mm with linkage
  • Rear Wheel travel: 200mm with linkage
  • Wheels: Spoked wheels with aluminum rims

Motor

  • Max. power: 22 kW
  • Torque:72 Nm
  • Battery: Lithium-Ion ALTIS PowerPack
  • Battery capacity: 35 Ah
  • Charging input: AC110V/112V12.5A
  • Charging time 20%-100%: 180 min.
  • Charging time 20%-80%: 120 min.
  • Cooling: Air cooled
  • Energy content: 3.402 kWh
  • Electric motor: 98V - Hairpin motor
